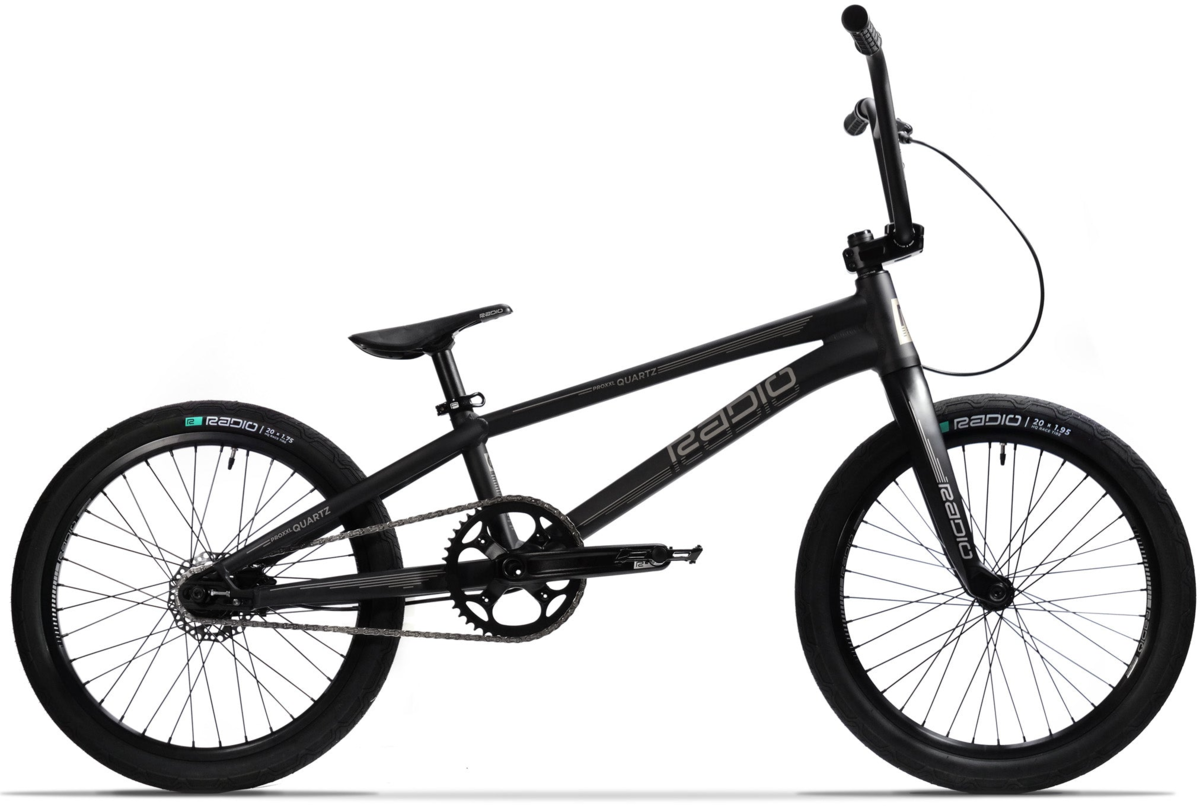

Radio Quartz Pro

Radio Quartz Pro
$1,749.99
Color: Matte Black
Size: Select size
Wheel Size: 20-Inch
Please select options Unavailable
Order now and pick up in-store for free

Details

The best of the best! The Quartz PRO is our 6-time world championship winning super-lightweight alloy frame with no details spared. We took this frame and draped it in only the very best components creating a full PRO build that anyone would be jealous to own. You’ll find our Solar Carbon fork, Oxygen Tires, Argon Rims, Turbine Hubs and even our new Hydraulic disc brake kit on this masterpiece of a bike. Ready for the track and the podium, we hope you can keep up with the speed that this machine can put out! Now with the all new Quartz Disc frame featuring our new sliding disc dropouts with flat mount brakes and super stealthy cable routing.

Sizes:
Top Tube Length20.9" / 21.25" / 21.75"
Chain Stay Length 14.25" / 14.85" / 15.25"
Head Tube Angle 74°
Seat Tube Angle 71°
Bottom Bracket Height 11.6"

Specs

Frame RADIO RACELINE "QUARTZ DISC" frame, lightweight hydroformed 6061-T6 alloy, tapered headtube, sliding forged dropouts, with int. chaintensioners, flatmount disc brake
Fork RADIO RACELINE "SOLAR" carbon fork, 1-1/8" - 1.5" tapered steerer, 32mm offset, inc. 10mm adaptors
Rims RADIO RACELINE "ARGON PRO" rim, flash welded, 32 / 36h, tubeless ready, alloy
Hubs FRONT HUB: RADIO RACELINE "TURBINE" front hub, alloy cnc, fully sealed, 32h / 36h, 3/8" female crmo axle
REAR HUB: RADIO RACELINE "TURBINE" rear hub, alloy cnc, fully sealed, 32h / 36h, disc brake cassette, 3/8" female crmo axle
Tires RADIO RACELINE "OXYGEN" tires, foldable, tubeless ready, front: 20" x 1.95" and rear: 20" x 1.75"
Bottom Bracket RADIO RACELINE "BSA24" bb set, external bearing cups, cnc machined, sealed
Crankset RADIO RACELINE, Xenon Pro, 2pc crank, cold forged/cnc, alloy, 175mm / 180mm length, 24mm spindle
Chainrings RADIO RACELINE "XENON PRO" sprocket, 43T / 44T, alloy
Cassette/Freewheel RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette
Chain KMC "Z1eHX" chain, 1/2" x 3/32"
Brakes PROMAX "F1" hydraulic disc brake, 120mm rotor, rear, flatmount
Brake Levers PROMAX "F1" 2 finger lever for hydraulic disc brake rear
Handlebars RADIO RACELINE "NEON PRO 7.5 / 8 / 8.5" hydroformed bar, multiple butted & heattreated crmo
Tape/Grips RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length
Stem RADIO RACELINE "XENON PRO" toploader stem, ext. 53mm, cold forged/cnc alloy
Headset RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5"
Seatpost RADIO RACELINE pivotal seat post, 27.2mm, alloy
Saddle RADIO RACELINE "XENON" pivotal seat, no padding
Pedals RADIO RACELINE "XENON SLIM" pedal, alloy

* Subject to change without notice.

Part Numbers

Option UPC MPN
Matte Black / 21.25-Inch / 20-Inch 04055822541916 100001831
Matte Black / 21.7-Inch / 20-Inch 04055822541923 100001832
